P1CA-24M24M-085CJ-24

High Frequency Cables from P1dB

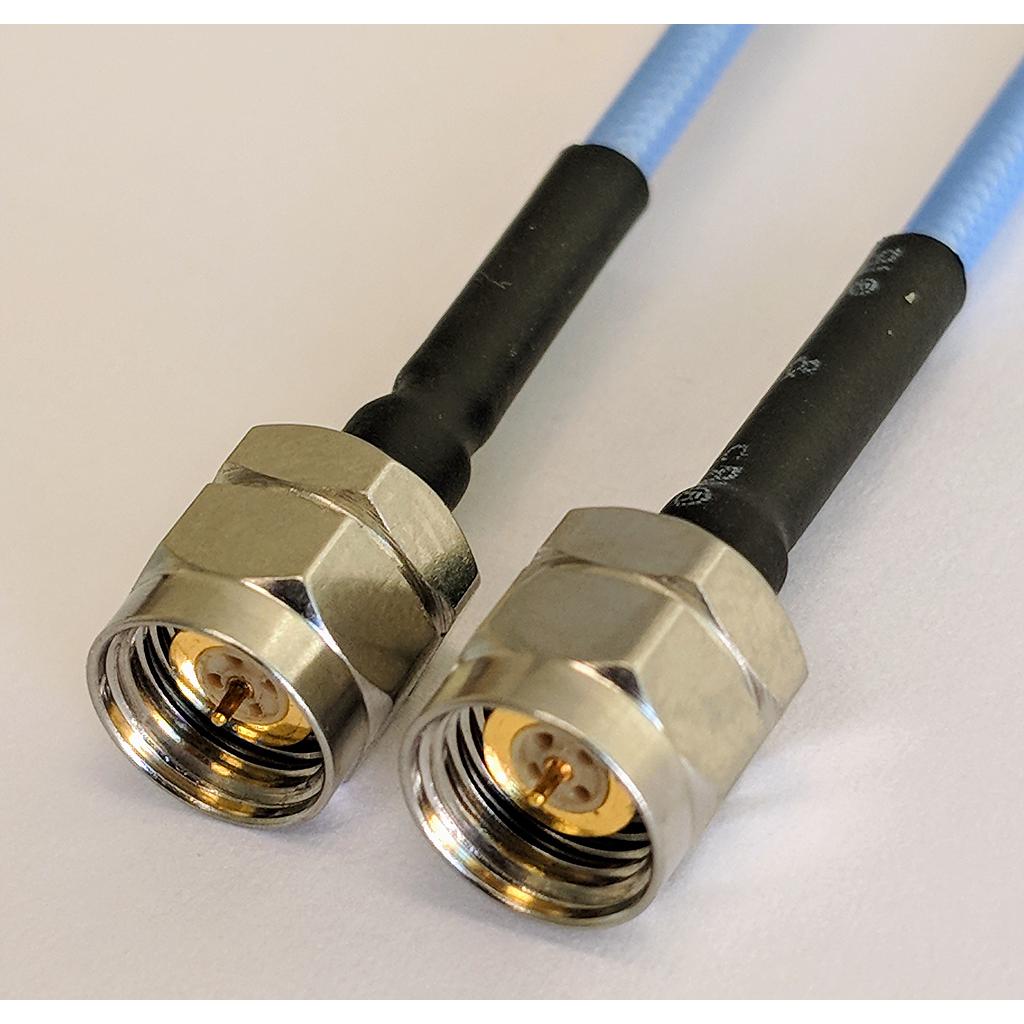

2.4mm Male to 2.4mm Male RF flex cable using Flexiform 085 hand formable cable, 24 inches long, Operating to 50 GHz.

P1-SMAPRA/SMAP-RG178-24
Cable Assembly, SMA Right Angle Male to SMA Male, RG178 Coax, 24 inches
Status: No new designs
Data Sheet: Data Sheet
RoHS Compliance: No
Specifications
Part Number:
P1CA-24M24M-085CJ-24
Status:
standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
2.4mm Male
Connector 2:
2.4mm Male
Cable Type:
Flexiform 085
Cable_Feature:
Hand Formable
Length (in):
24.0
Outer Diameter (in):
0.104
Max. Frequency (GHz):
50.0
Data.F1:
1.0
Data.F2:
18.0
Data.F3:
30.0
Data.F4:
50.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.35
VSWR4:
1.45
IL1:
0.2
IL2:
1.3
IL3:
1.5
IL4:
1.95
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Beryllium Copper
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Passivated Stainless Steel
ConnContact2:
Gold Plated Beryllium Copper
InnerCond:
SPC
Dielectric Material:
PTFE
Shield2:
SPC Braid
JacketMat:
FEP
MinBend:
0.25
OpTmpMin:
-55.0
OpTmpMax:
125.0

P1dB's RF cable assembly P1CA-24M24M-085CJ-24 is a 50 Ohm hand formable cable 24 inches long with an outer diameter of 0.104 inch. It has 2.4 mm male connectors and operates to 50 GHz with a typcial VSWR of 1.40 (1.45 maximum). The cable has a bend radius of 0.25 inch and a Velocity of Propagation of 70%. Typical Insertion Loss measures 1.2 dB/ft at 18 GHz and 1.8 dB/ft at 40 GHz.

P1CA-24M24M-085CJ-24 is a hand formable high frequency cable assembly with good phase and amplitude stability for general purpose test applications.

Qty: in Unit(s)

74.79 74.79 74.79 USD

74.79

Pricelist
Min. Qty
Price
  • 1
    $ 74.79
  • 10
    $ 68.17
  • 25
    $ 64.32
Typical Delivery: 30.0 Days
